20W Dual HDMI VGA Fanless Desktop Mini Pc Intel Core i7 8700T

  • 1
  • 2

Brand Name : Shinho

Model Number : SM605

Certification : CE, RoHS, FCC

Place of Origin : Shenzhen , China

MOQ : 1 Piece

Price : negotiable

Payment Terms : T/T , Paypl , L/C , D/A , D/P , Western Union , MoneyGram

Name : Mini Pc Windows 10 Pro

CPU : Intel Core i7 8700T, 6 core, 2.4 GHz

RAM : 8 GB DDR4

Hard disk : 128G SSD

Material : Aluminum Alloy

Temp : -20℃～60℃

Front I/O : 6*USB2.0, 2* COM, 1*Metal switch

Rear I/O : "1*DC-IN 12V, 2*USB3.0, 2*HDMI, 1*VGA, 2*Intel 1000M LAN, 1* Mic, 1*Line out, 1* DC "

Expansion Slot : 1*M.2 2280 slot, 1*MINI PCIE slot

dimension : 25.54 * 21.9 * 8.9 cm

Weight : 3.5 KG

Power consumption : ≤20W

Contact Now

Fanless Desktop Mini Pc Windows 10 Pro With Dual HDMI & VGA For Dual Display

Features
1. Full Aluminum alloy enclosure, fanless design.
2. High performance motherboard, 7x24 continuous operation.
3. Intel Core i7 8700T, 6 core, 2.4 GHz
4. Support 2*DDR4 memory slot, Max. Support 32G.
5. Support 1*M.2 slot, 2*2.5”HDD optional
6. Support 6*COM (1*RS232/RS422/RS485 optional.)
7. Support 2 HDMI.
8. Support 12-19V wide voltage. (9V-36V wide voltage optional)
9. Support WIFI/4G optional.
10. Compatible Windows 7/8/10, Linux.

Specification

Model: SM605
PC
CPU Intel Core i7 8700T, 6 core, 2.4 GHz
Memory 2*DDR4 memory slot, Max. Support 32G
Storage 1*M.2 slot, 2*2.5”HDD
Display 1x VGA, 2x HDMI, (Support synchronous display or asynchronous display)
Display Chip Integrated Intel HD Graphics 630
Network 2*Intel RTL811 10/100/1000M LAN
Front I/O 6*USB2.0, 2* COM, 1*Metal switch
Rear I/O 1*DC-IN 12V, 2*USB3.0, 2*HDMI, 1*VGA, 2*Intel 1000M LAN,
1* Mic, 1*Line out, 1* DC
Expansion Slot Support 1*M.2 2280 slot(Support M.2 PCIE X4 and M.2 SATA SSD)
Support 1*MINI PCIE slot(WIFI/3G/4G choose one from three, embedded SIM socket
BIOS AMI EFI BIOS
WDT Support hardware reset (256 level, 0-255 sec)
Operation System Support Windows 7/8/10, Linux, Ubuntu, Debian etc.
Power Supply
External Power Supply AC 100 - 240V
Working voltage DC 12V-19V
Power consumption ≤20W
Enclosure
Material Aluminum Alloy
Color Grey
Operating Environment
Temperature Range operating: -20 to 60°C, storage: -20 to 60°C, surface air flow
Relative humidity 0%~95% , non-condensing
Packing Details
Net weight 3.5 kg
Gross weight 4 kg
Product Dimension 25.54 * 21.9 * 8.9 cm
Packing size 30*27*15cm
Accessories Power adapter, Wall mount braket, user manual, warranty card
Other
Mounting (options) Embedded mounting
wall mounting brackets
Warranty 1 year warranty

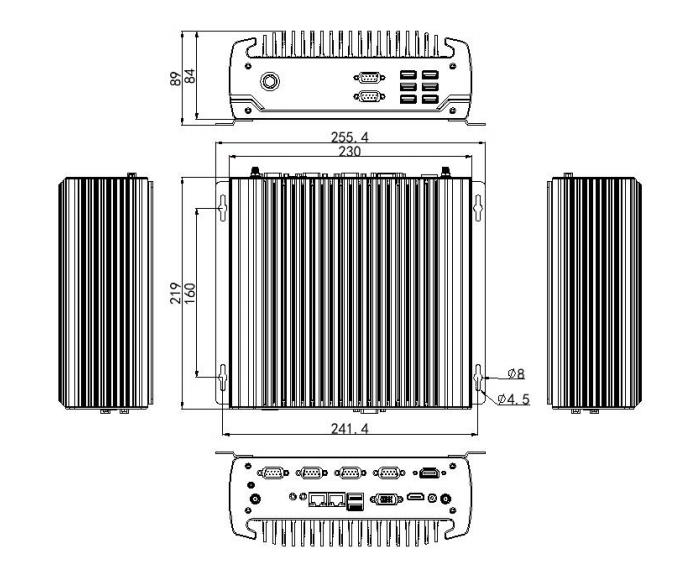

Drawing

20W Dual HDMI VGA Fanless Desktop Mini Pc Intel Core i7 8700T

Rugged PCs ideal for applications like

manufacturing

industrial automation

medical, semiconductor

food processing

machine control

other scenarios in which desktops and notebooks are not feasible, yet high processing performance is needed.
