Industrial LCD Panel Embedded Touch PC Wide Viewing Angle For National Defense

Brand Name : Sihovision

Model Number : SC15S

Certification : CE , FCC , RoHs

Place of Origin : Shenzhen , China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram

Product Name : 15 Inch Embedded Touch Panel PC with Linux OS And J1900 Fanless

CPU : Intel® Celeron J1900 , quad core , 2.0GHz, fanless

Touch Type : 5 wire resisitive touch

Resolution : 1024*768

Brightness (cd/m²) : 400+

View angle : 80°/80°/80°/80° (R/L/U/D)

Product Dimension : 27.1 x 21.2 x 5.2cm

Material : Aluminum Alloy bezel+High strength cold rolled steel back case

Contact Now


15 Inch Embedded Touch Panel PC with Linux OS And J1900 Fanless

Features:

1. CPU is J1900, fanless.

2. Front bezel is oxidized and brushed with sand, upto NEMA IP65, very rugged, durable.

3. Appearance is beautiful, very light and portable.

4. Industrial LCD panel, wide viewing angle, high nits, true color.

5. Adopt 5 wire resistive touch screen, high precision, high temperature resistance, strong anti-interference, stable and durable.

6. High performance motherboard, 7x24 continuous operation.

7. 9-24V wide voltage support.


Application:

It is ideal for application such as telecom, electric power, multimedia, national denfense, spaceflight, EMR healthcare terminal, CNC machinery control, PLC and POS controller, numerical control device, retail interactive kiosk, digital signage interface and industrial automation etc.


Advantages

This compact and nimble 8 inch panel mount touchscreen PC is a slim, fanless computer suitable for a wide variety of applications. The industrial panel pc is built with the Bay Trail Celeron J1900 quad-core CPU, which employs a system on chip (SoC) architecture to ensure high reliability in many environments. This unit can be panel mounted or VESA mounted for quick and easy installation in your operations. Additionally, the front bezel of this resistive touchscreen.


Specification

Model:SC15
PC
CPU Intel® Celeron J1900 , quad core , 2.0GHz, fanless
Chipset Intel ValleyView SSA-CUnit
Memory 2G DDR3 (4G optional)
Hard Drive Capacity 32G SSD
Hard Drive Optional SSD: 64G,128GB,256GB
HDD: 500GB,1TB
Graphics CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network 1×Realtek RTL 8111E Gigabit Ethernet controller
Wireless Network WIFI
I/O Interface 2×USB 2.0,2×USB 3.0,2 x COM RS232
1×VGA/HDMI/1×RJ45/Audio OUT/MIC IN/POWER DC
Operation System Support Windows 7/8/10, Linux, Ubuntu, Debian etc.
LCD panel
Panel size 15"
Resolution 1024*768
Aspect ratio 4:3
Support Color 16.7M colors
Brightness (cd/m²) 400 nits
Response time 5ms
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type 5 wire resistive touch
Touch Interface USB (RS232 optional)
Touch response time <8ms
Luminousness 90%
Surface Hardness 3H
Working Life >35 million times
Touch options ( capacitive touch, IR touch optional)
Power Supply
External Power Supply AC 100 - 240V
Working voltage 12V (9-24V wide voltage optional)
Power consumption ≤45W
Enclosure
Material Aluminum Alloy bezel+High strength cold rolled steel back case
Color Silver , Black, white, color can be customized
Operating Environment
Temperature Range operating: -10°C to 60°C, storage :-20°C to 70°C
Relative humidity 10%~90% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight 3kg
Gross weight 4kg
Product Dimension 38x30x5.6cm
Packing size 47x45x18cm
Accessories Power adapter,embedded screws,driver CD,touch pen
Other
Mounting (options) embedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Warranty 3 years warranty



Attention of warranty
1. First year warranty: by free
2. 2nd to 3rd year warranty: maintaining by some charges.

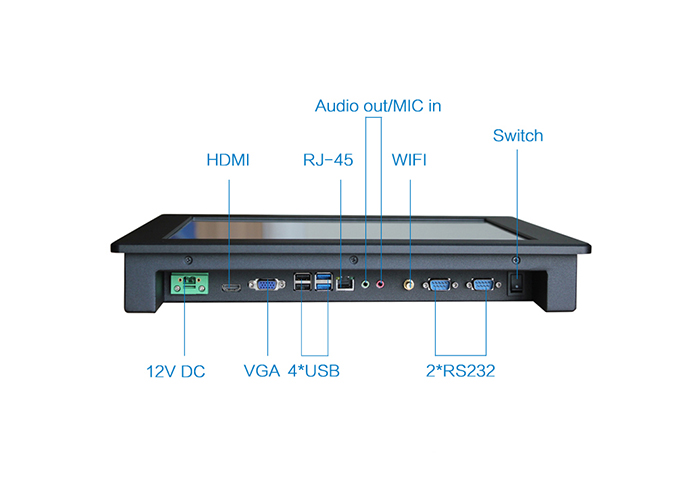

Signal Ports
