Industrial-grade 8 inch TFT LCD with LED backlight and appearance is flat panel monitor with front panel IP65 waterproof and dustproof. Material is Alloy front bezel and high strength cold rolled steel, extremely firm, and provides many industrial grade features such as seamless chassis, VESA mounting flexiblity.
Features
1. 8 inch industrial grade TFT LCD with LED backlight.
2. Adopt Multi point infrared touch screen with tempered glass, vandal resistant and high stability.
3. Industrial LCD panel, wide viewing angle, high nits, true color.
4. High performance mainboard, 7x24 continuous operation.
5. Support wall mounting, embedded mounting and desk stand mouting etc.
6. Wide viewing angle is 80°/80°/80°/80° (R/L/U/D).
Advantages
1. Material is aluminium alloy and high strength cold rolled steel, it's very sturdy and durables.
2. Symmetric design can be utillized in portrait mode with style.
3. A smooth texture is beatiful and practical.
4. Signal ports is VGA and DVI, and HDMI also can be customized, suitable for different applications.
5. -10C to +60°C Wide temperature support.
6. Great for open frame, also support VESA mounting and embedded mounting.
Specification
| Model:SL08 |
| LCD panel |
| Panel size | 8" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400+ |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel |
| Touchscreen Type | 2 points infrared touch |
| Surface Hardness | 3H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (4 or 5 wires restive touch, IR touch optional) |
| Signal Ports |
| VGA | 1×VGA |
| DVI | 1×DVI |
| HDMI | optional |
| Audio in/out | optional |
| OSD |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP , Windows /7/8/10 , Linux, Mac OS X, Android ect. |
| Power Supply |
| External Power Supply | AC 100 - 240V , 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤35W |
| Enclosure |
| Material | Alloy front bezel |
| Color | Black, white, Silver , color can be customized |
| VESA mounting | 75×75mm/100×100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | operating: 10% to 80% , storage :5% to 90% |
| Packing Details |
| Net weight | 2kg |
| Gross weight | 2.5kg |
| Product Dimension | 23.1×18.25×4.7cm |
| Packing size | 30*35*19cm |
| Accessories | Power adapter, VGA cable, USB touch cable,embedded screws,user manual,
warranty card |
| Other |
| Mounting | open frame |
| embedded mounting screws |
| wall mounting brackets (optional) |
| desk stand holder (optional) |
| Warranty | 3 years warranty |
| Certificates | CE, FCC, RoHS |
Attention of warranty
1. First year warranty: by free
2. 2nd to 3rd year warranty: maintaining by some charges.

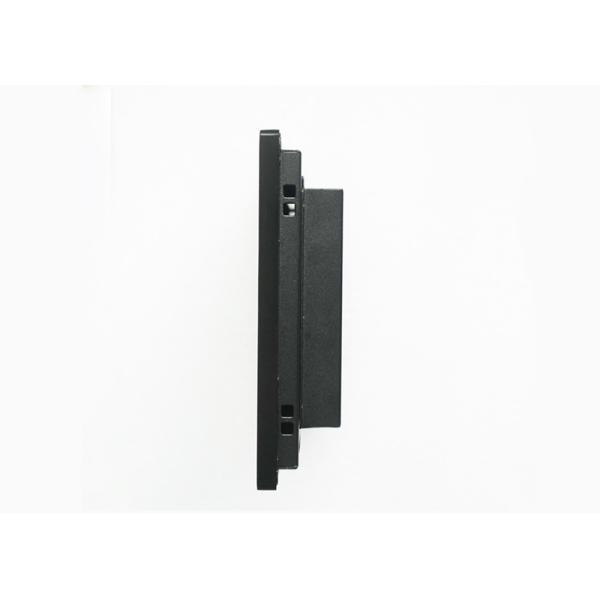

Pictures
Drawing
